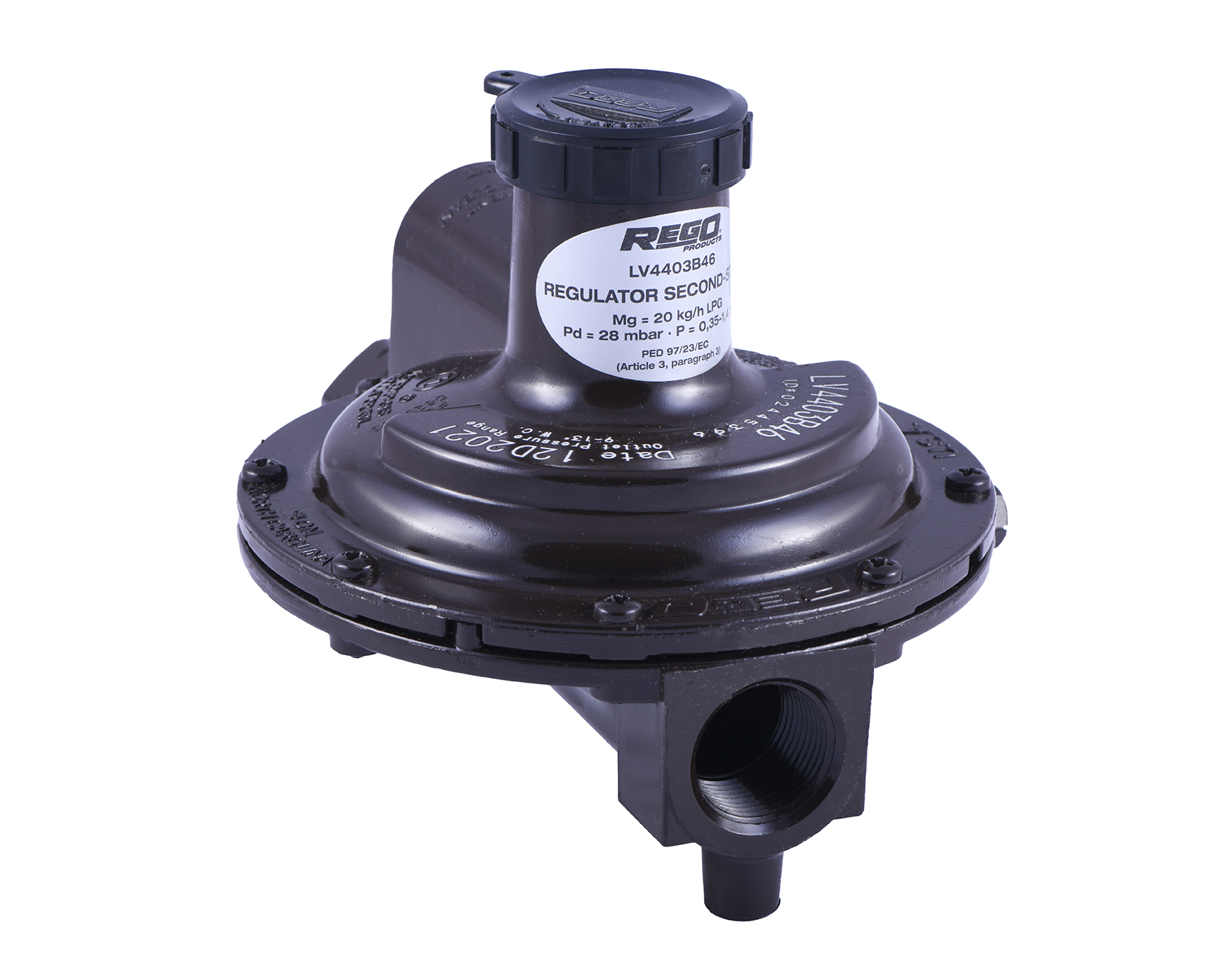

Designed to reduce first stage pressure of 5 to 20 PSIG down to burner pressure, normally 11” w.c. Ideal for medium commercial installations, multiple cylinder installations and normal domestic loads.

Categories: , ,

Description

Designed to reduce first stage pressure of 5 to 20 PSIG down to burner pressure, normally 11” w.c. Ideal for medium commercial installations, multiple cylinder installations and normal domestic loads.

Features

• Large vent helps prevent blockage and has ¾ ” F.NPT for vent piping.
• With 15 PSIG inlet pressure, regulator is designed to not pass more than 2 PSIG with the seat disc removed.
• Incorporates integral relief valves.
• Replaceable valve orifice and valve seat disc.
• Straight line valve closure reduces wear on seat disc.
• Unique bonnet vent profile minimizes vent freeze over when properly installed.
• Large molded diaphragm is extra sensitive to pressure changes.
• Built in pressure tap has plugged ⅛ F.NPT outlet. Plug can be removed with a 3⁄16 ” hex allen wrench.
• Select brown finish.

https://www.regoproducts.com/lpgproductpdfs/lv4403b.pdf
