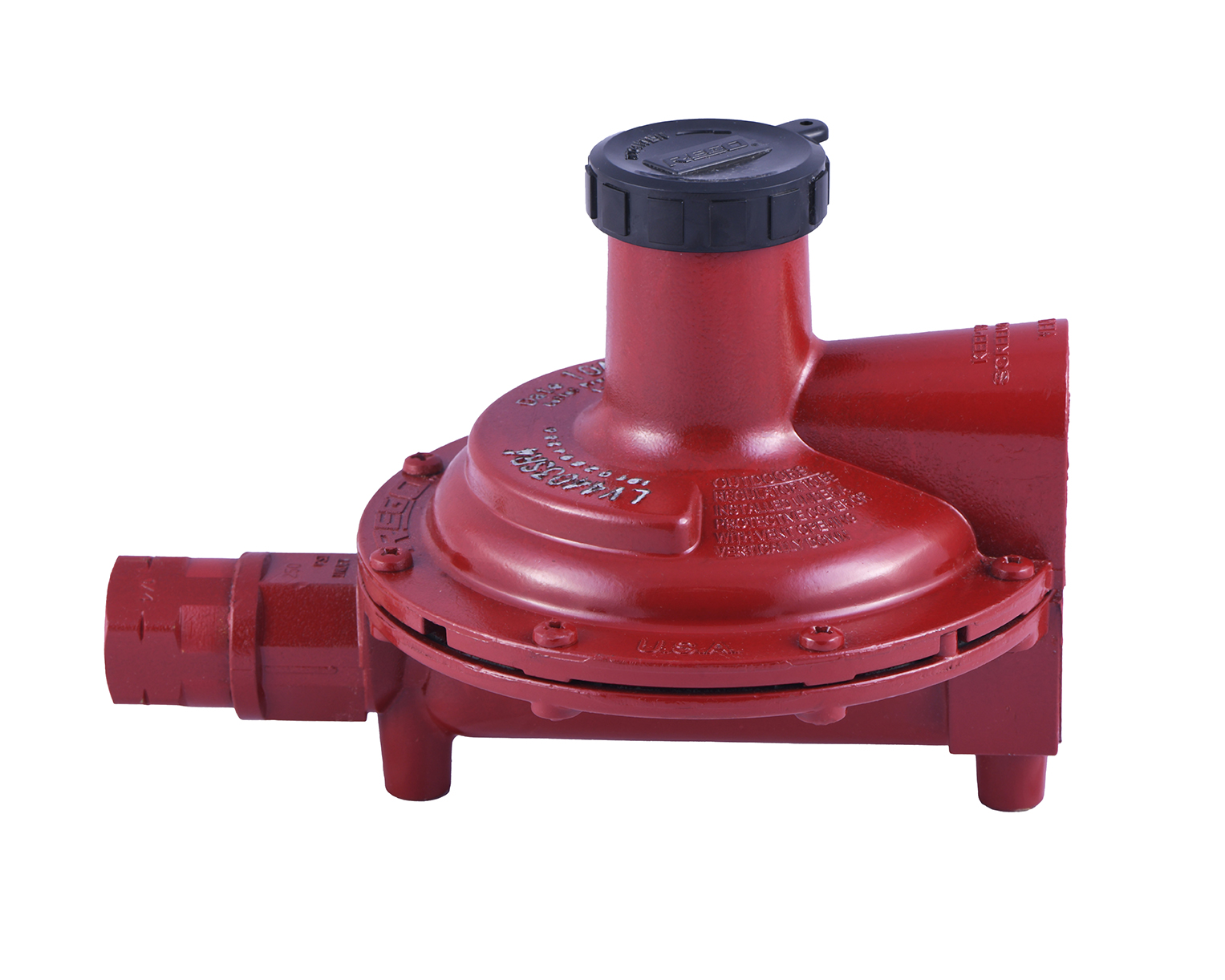

US REGO gas regulator, the production of sophisticated products, voltage stability, a wide range of high precision and reliability, suitable for liquefied petroleum gas pipeline regulator!

SKU: OKEhpReg54 Categories: , , Tags: , ,

Description

product features

  • Function: SurgeVacuum regulator
  • Location: United States
  • Name: LV4403SR4 a gas valve
  • Pressure: 16Kg, SR4 a pressure range 0.07-0.35kg
  • Product advantages
  • US REGO gas regulator to enter the Chinese market has been for decades, the production of sophisticated products, voltage stability, a wide range of high precision and reliability, suitable for liquefied petroleum gas pipeline regulator, high strength products are well known, is believed to have not the need for excessive introduced.

First, the United States REGO force high pressure regulator Product description:

US REGO gas regulator, the production of sophisticated products, voltage stability, a wide range of high precision and reliability, suitable for liquefied petroleum gas pipeline regulator!

Second, the commonly used models Technical parameters:

1, United States REGO a high transfer medium pressure regulator / gas valve

model

flow

Importers connection

Inlet pressure

Outlet pressure

597FA regulator

40 kg/h

1/4

16 kg/cm2

0.07-1.05 kgf/cm2

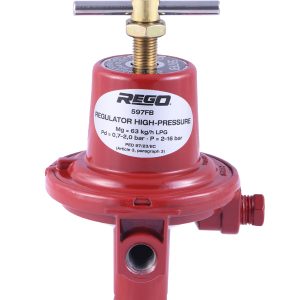

597FB regulator

68 kg/h

0.70-2.00 kgf/cm2

597FC regulator

80 kg/h

1.41-3.16 kgf/cm2

597FD regulator

102 kg/h

2.81-7.03 kgf/cm2

1584MN regulator

80kg/h

1/2

16 kg/cm2

0.21-2.1 kgf/cm2

1584ML regulator

80 kg/h

1.76-3.52 kgf/cm2

1584MH regulator

90 kg/h

3.16-8.79 kgf/cm2

1586MN regulator

200 kg/h

3/4

16 kg/cm2

0.21-2.44 kgf/cm2

1586ML regulator

200 kg/h

1.86-3.52 kgf/cm2

1586MH regulator

200 kg/h

3.16-8.79 kgf/cm2

1588MN regulator

200kg/h

1

16 kg/cm2

0.21-2.1 kgf/cm2

1588ML regulator

210 kg/h

1.76-3.52 kgf/cm2

1588MH regulator

250 kg/h

3.16-8.79 kgf/cm2

LV4403TR4 regulator

50 kg/h

1/2

16 kg/cm2

0.35-0.7 kgf/cm2

LV4403SR4 regulator

50 kg/h

0.07-0.35 kgf/cm2

2, United States REGO transit and low voltage regulator / gas valve

model

flow

Importers connection

Inlet pressure

Outlet pressure

LV4403B4 regulator

20 kg/h

1/2-1/2

0.7 kg/cm2

240-330mmwc

V4403B66 regulator

20 kg/h

3/4-3/4

0.7 kg/cm2

240-330mmwc

LV5503B66 regulator

35 kg/h

3/4-3/4

0.7 kg/cm2

240-330mmwc

LV5503B8 regulator

50 kg/h

3/4-1

0.7 kg/cm2

240-330mmwc

LV5503H820 regulator

40 kg/h

3/4-1

0.7 kg/cm2

300-700mmwc

LV5503H840 regulator

35 kg/h

3/4-1

0.7 kg/cm2

710-2134mmwc

3, United States REGO single-stage high to low pressure regulator / gas valve

model

flow

Importers connection

Inlet pressure

Outlet pressure

LV4403C4 single-stage regulator

13 kg/h

1/2-1/2

4.0-16 kg/cm2

240-330mmwc

LV5403C4 single-stage regulator

32 kg/h

1/2-3/4

4.0-16 kg/cm2

240-330mmwc

The following is our introduction of foreign advanced technology to produce the gasifier gas equipment! Technical rationale to explain: Installation Drawing/ Case diagram.



Pictured Constant East 200KG medium gasifier -(100-200UG drawings)



Pictured Constant East 30KG medium gasifier – (20-50KGDrawings)



1) electric vaporizer and carburetor are made of stainless steel to extend the service life;
2) off the electric vaporizer area better applicable domestic liquefied petroleum gas;
3) automatic instrument control, make equipment more secure, and reliable;
4) inverted suction discharge residue structure enables more thorough discharge residue;
5) Unique float overnight protection, effectively prevent excessive fluid phenomenon, so running more secure.
6) Technical parameters:

I. Introduction gasifier

Gasification is a device to force gasification of liquefied petroleum gas, liquid ammonia and other gases for industrial factories, residential quarters gas pipelines, catering kitchen, baking, paint coating and large greenhouse heating and gas supply systems, it can be a good solution in a cylinder of liquefied petroleum gas (gas) from the large amount of residual pipeline from ice cream and icing, to ensure a continuous supply with a wall-mounted, Dongguan Heng East gas Equipment Co., supplied, warm style , air temperature, direct-fired and other ways for users to purchase, Tel: National Service Hotline #: 400 888 466,718,925,420,873 Miss Li.





Second, Hang Dong electric vaporizer features:
Constant East electric vaporizer advanced technology, safe and reliable energy from gasification hour 50KG to 500KG kinds of model specifications.
For residential housing and commercial and industrial gas.
Electric control devices and electric heaters are used explosion-proof design, explosion-proof grade Ex DIIBT4.
Gasifier technology structure, durable, and has anti-corrosion. Electric control box and the gasifier combined structure, space-saving, convenient and practical.
Detection gasifier pressure 3.3MPa (33 kg / cm2), the safety rated pressure: 1.76MPa (17.6kg / cm2).
Explosion-proof solenoid valve, when the gas outlet through the liquid solenoid valve closes automatically.
Safety relief valve may exceed pressure gas automatically discharged and then automatically shut down.
Two electronic temperature control, automatic adjustment of 60-70 degrees water temperature, air supply and stability.
